High Input Voltage 180-450Vdc/150-1500Vdc

Cincon offers a variety of high input voltage DC-DC converters ranging from 75W to 750W, available in industry-standard quarter, half, and full brick sizes. These converters provide a nominal 300Vdc input with an input range of 180 to 425Vdc, along with 3000VAC reinforced isolation. They are designed for use in distributed power architectures, telecommunications, servers, base stations, battery-operated equipment, drones, unmanned ground vehicles, and a wide array of industrial applications.

In addition, Cincon features ultra-wide and ultra-high input voltage DC-DC converters, offering input ranges from 150V to 1500V, with power output options from 15W to 45W. These converters are ideal for photovoltaic applications, including control units and power monitoring systems, where precise and efficient power management is crucial.

Built with 4KVac input-to-output isolation and certified under UL1741, CSA-C22.2 No.107.1, and EN62109 standards, Cincon's converters ensure top-tier power efficiency, safety, and reliability for your PV solar power systems. These robust certifications make them an optimal choice for renewable energy applications, ensuring seamless performance and long-term sustainability.

Cincon DC-DC converters are constant switching frequency design. There are two types of DC-DC converts. One is constant switching frequency, and the other one is variable switching frequency. In general, one of the important advantages of constant switching frequency is the solution to the EMI issue is much easier. In addition, if the system requires the parallel function, Cincon full brick high input voltage DC-DC converters provide active current share with the parallel function.

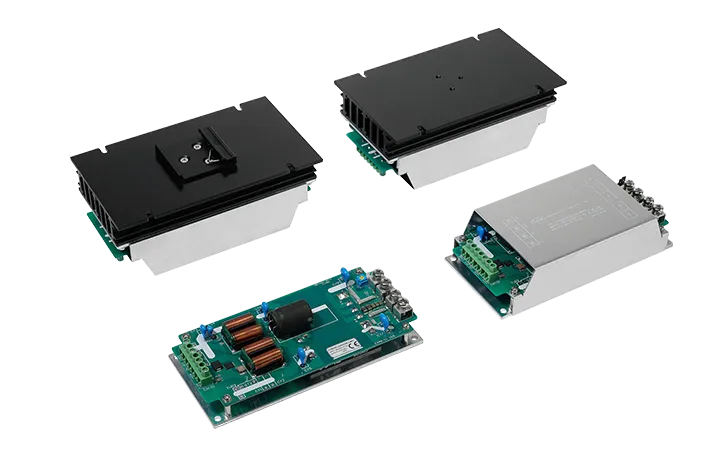

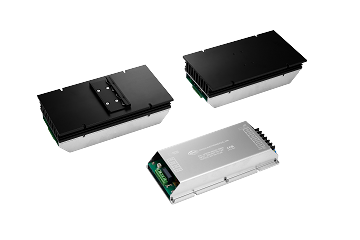

Cincon also provides various heatsinks to solve temperature issues and plug-in ready to use chassis-mount DC-DC modules including EMI solution to shorten your product development time. Now we have modules from 75W to 750W for you to choose.

10:1 Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Find stock	RFQ
NEW	DH15W10	15W	150~1500V	5V, 12V, 15V, 24V	4KVac Isolation UL1741, EN62109-1	3.00x2.00x0.984(P) 4.81x2.26x1.260(ST) 4.81x2.26x1.713(DR)	Stock	RFQ
NEW	DH30W10	30W	150~1500V	12V, 15V, 24V, 48V	4KVac Isolation UL1741, EN62109-1	3.50x2.50x0.984(P) 5.31x2.76x1.260(ST) 5.31x2.76x1.713(DR)	Stock	RFQ
NEW	DH45W10	45W	150~1500V	12V, 15V, 24V, 48V	4KVac Isolation UL1741, EN62109-1	3.50x2.50x0.984(P) 5.31x2.76x1.260(ST) 5.31x2.76x1.713(DR)	Stock	RFQ

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Find stock	RFQ

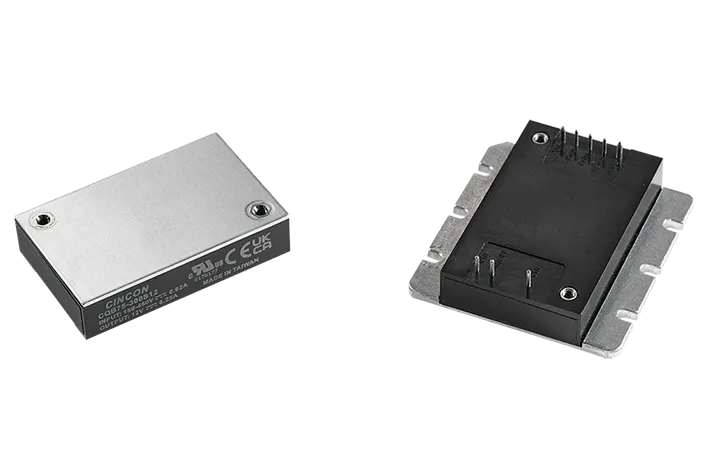

CQB75-300S	75W	180~450V	3.3V, 5V, 12V, 15V, 24V, 48V	3KVAC Isolation UL62368-1 & CB M2 grade option	2.28×1.45x0.50 (Quarter Brick)	Stock	RFQ

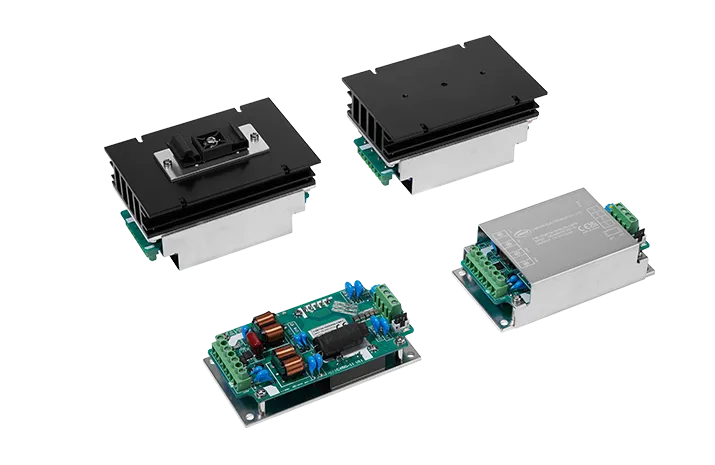

CQB75-300S-CMFC(D)	75W	180~450V	3.3V, 5V, 12V, 15V, 24V, 48V	3KVac Isolation Screw Terminal Build in filter EN45545-2 Baseplate Cooled	4.60x2.40x1.24 (CMFC) 4.60x2.49x1.35 (CMFD)	Stock	RFQ

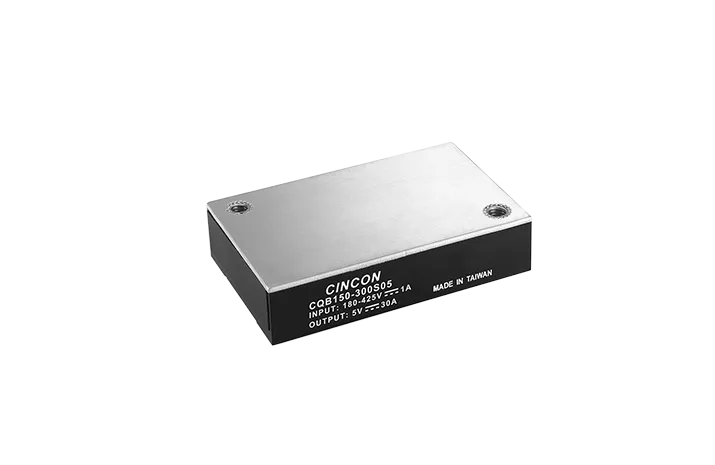

CQB150-300S	150W	180~425V	5V, 12V, 15V, 24V, 28V, 48V	3KVAC Isolation UL62368-1 & CB M2 grade option	2.28×1.45x0.50 (Quarter Brick)	Stock	RFQ
CQB150-300SXX-CMFC(D)	150W	180~425V	5V, 12V, 15V, 24V, 28V, 48V	3KVac Isolation Screw Terminal Build in filter EN45545-2 Baseplate Cooled	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)	Stock	RFQ

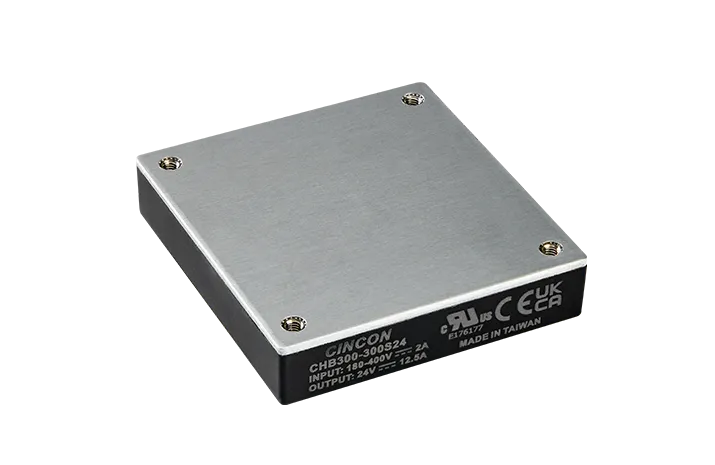

CHB300-300S	300W	180~425V	5V, 12V, 24V, 28V, 48V	3KVAC Isolation UL60950-1 & CB M2 grade option	2.28×2.40x0.50 (Half Brick)	Stock	RFQ
CHB300-300SXX-CMFC(D)	300W	180~425V	5V, 12V, 24V, 28V, 48V	3KVac Isolation Screw Terminal Build in filter EN45545-2 Baseplate Cooled	6.50x3.00x1.52 (CMFC) 6.50x3.09x1.57 (CMFD)	Stock	RFQ

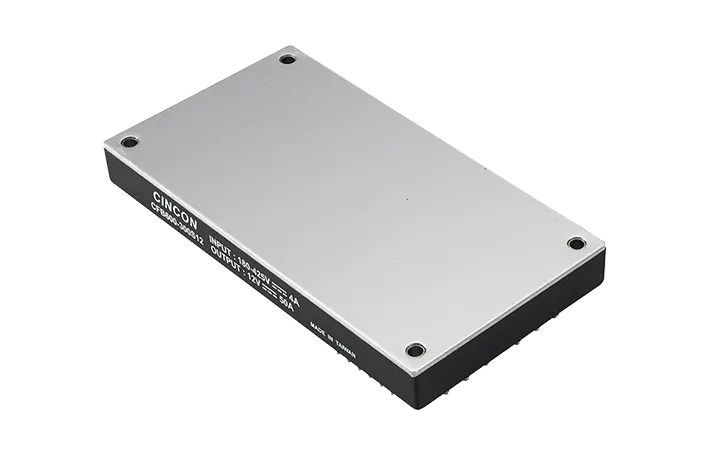

CFB600-300S	600W	180~425V	12V, 24V, 48V	3KVAC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)	Stock	RFQ

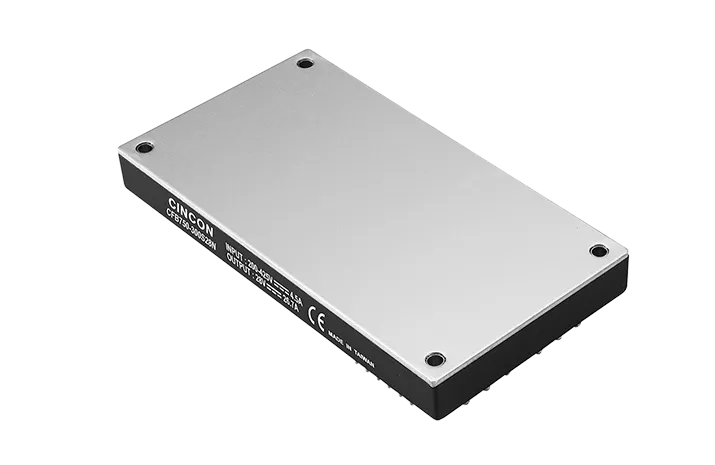

CFB750-300S	750W	200~425V	12V, 15V, 24V, 28V, 36V, 48V	3KVAC Isolation	4.60×2.40x0.50 (Full Brick)	Stock	RFQ
CFB750-300SXX-CMFD	750W	200~425V	12V, 15V, 24V, 28V, 36V, 48V	3KVac Isolation Screw Terminal Build in filter EN45545-2 Baseplate Cooled	9.45x4.33x1.65	Stock	RFQ
