Medical Power Solution

Medical Power Solution

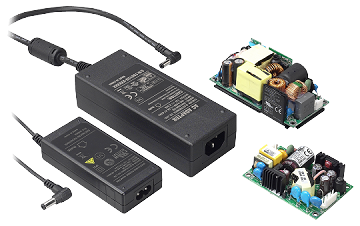

Accumulating more than 15 years of experience in medical product design, Cincon provides customers with a variety of products and technical services. Medical products provide low leakage current and harsh environment endurance that meets the highest requirements of hospital and health care applications. We offers a diverse product line of medical power supplies, Class I or Class II adapters with universal input 90~264Vac or even 80~264Vac. All our medical products meets the industry highest requirements for 2MOPP, ANSI/AAMI ES60601-1/EN60601-1 Ed 3.1, and EN60601-1-2 Ed4.0 Class B. Also, all are CEC & ErP Level VI Compliant.



For external medical power supplies, there are medical Class II interchangeable plug adapters, and the power range starts from 15W to 30W. There are also desktop medical Class II adapters, and the power range starts from 36W to 100W. In addition, Cincon provides desktop medical power adapters with Class I & Class II option which are 70W and 160W.



For internal medical power supplies, there are Class II open-frame on-board type with the 20W output power and Class I open-frame connector type with the output power range starting from 40W to 500W. The case covered option is also available. In addition, Cincon has medical power supplies built in with baseplate-cooling technology and the power range starts from 130W to 500W.

Medical Class I & Class II Adapter

Model Power Input Voltage Output Voltage Features Dimensions (Inch) Datasheet Find stock RFQ
　　　 TR70M TR70M 70W 80-264 12V, 15V, 18V, 24V, 36V, 48V 2MOPP
Altitude 5000m
 4.724x2.047x1.220 Stock RFQ
　　　 TR160M TR160M 160W 80-264 12V, 24V, 36V, 48V 2MOPP
Altitude 5000m		 5.906x2.756x1.496 Stock RFQ
　　　 TR220M TR220M 220W 80-264 12V, 24V, 36V, 48V, 56V 2MOPP
Altitude 5000m
 7.087x2.953x1.752 Stock RFQ

Medical Class II Adapter

Model Power Input Voltage Output Voltage Features Dimensions (Inch) Datasheet Find stock RFQ
　　　 TR36M TR36M 36W 80-264 5V, 9V, 12V, 13.5V, 15V, 18V, 24V, 36V, 48V 2MOPP
Altitude 5000m
EN60601-1-11 IP21
Meets EN60335-1		 3.937x1.771x0.886 Stock RFQ
　　　 TR60M TR60M 60W 90-264 5V, 12V, 15V, 18V, 19V, 24V, 36V, 48V 2MOPP
Level V
 5.197x2.283x1.201 Stock RFQ
　　　 TR100M TR100M 100W 90-264 12V, 15V, 18V, 20V, 24V, 48V 2MOPP
 5.591x2.283x1.457 Stock RFQ

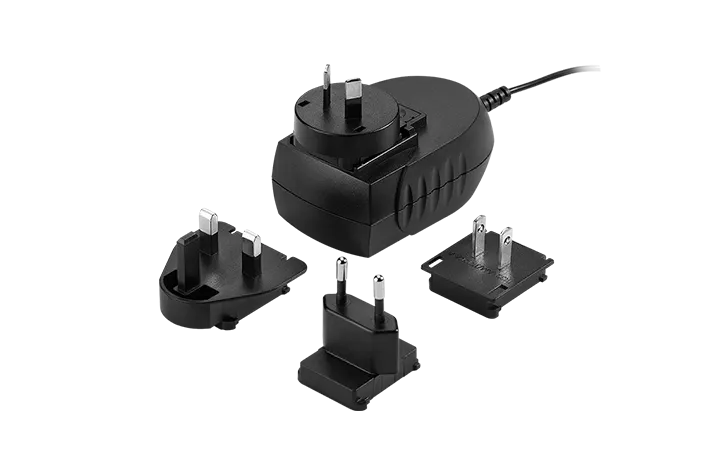

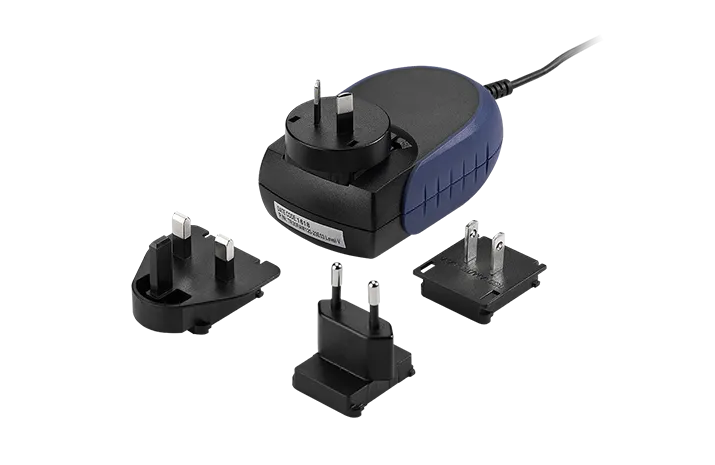

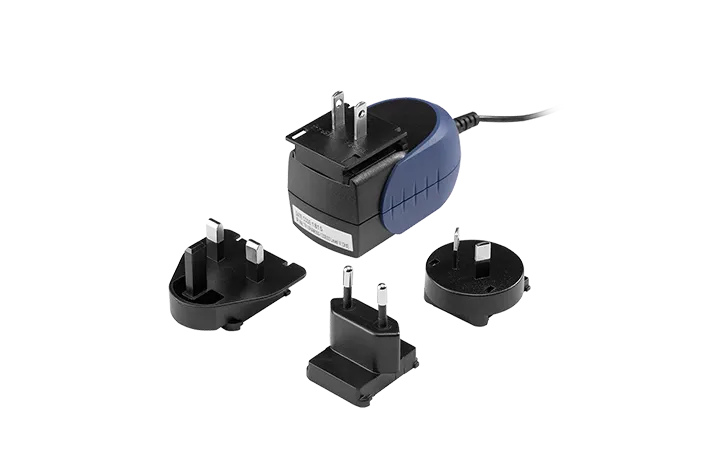

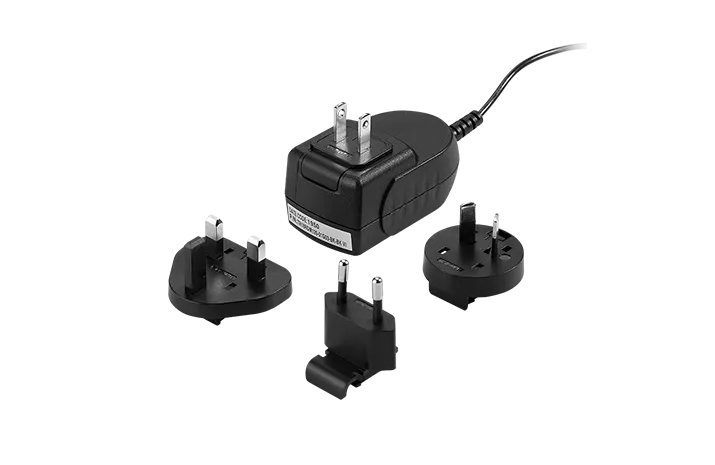

Medical Class II Interchangeable Plug Adapter

Model Power Input Voltage Output Voltage Features Dimensions (Inch) Datasheet Find stock RFQ
　　　 TR15RAM TR15RAM 15W 90-264 5V, 12V, 15V, 24V 2 MOPP
 3.173x1.885x1.704 Stock RFQ
　　　 TR18RDM TR18RDM 18W 80-264 5V, 9V, 12V, 15V, 18V, 24V 2MOPP
Altitude 5000m
EN60601-1-11 IP22,
Meets EN60335-1		 3.165x1.693x1.453 Stock RFQ
　　　 TR30RDM TR30RDM 30W 80-264 5V, 9V, 12V, 15V, 18V, 24V 2MOPP
Altitude 5000m
EN60601-1-11 IP22
Meets EN60335-1		 3.807x2.283x1.703 Stock RFQ
　　　 TR30RAM TR30RAM 30W 90-264 5V, 9V, 12V, 15V, 18V, 24V 2 MOPP
 4.278x2.440x1.445 Stock RFQ

Medical Class II On-Board Open Frame

Model Power Input Voltage Output Voltage Features Dimensions (Inch) Datasheet Find stock RFQ
　　　 CFM21 CFM21 20W 90-264 3.3V, 5V, 9V, 12V, 15V, 24V 2MOOP
2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)		 Stock RFQ

Medical Class I Connector Open Frame

Model Power Input Voltage Output Voltage Features Dimensions (Inch) Datasheet Find stock RFQ
　　　 CFM40M CFM40M 40W 90-264 3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V 2MOPP 3.000x2.000x0.948
(PCB-mount)
3.000x2.000x0.909
(Wafer)
3.200x2.441x1.260
(Cover)		 Stock RFQ
　　　 CFM60M CFM60M 60W 90-264 5V, 12V, 15V, 24V, 48V 2MOPP
 4.000x2.000x1.100
(Wafer)
4.606x2.441x1.575
(Cover)		 Stock RFQ

Medical Baseplate-cooled Open Frame

Model Power Input Voltage Output Voltage Features Dimensions (Inch) Datasheet Find stock RFQ
　　　 CFM130M CFM130M 130W 80-264 12V, 18V, 19V, 24V, 36V, 48V 2MOPP
Altitude 5000m
Class I & Class II		 3.000x2.000x1.20
(Open-frame)
3.598x2.000x1.299
(Baseplate)
3.598x2.520x1.358
(Cover)		 Stock RFQ
NEW LFM200M LFM200M 200W 85-264 12V, 15V, 24V, 28V, 30V, 36V, 48V, 54V 2 MOPP
Altitude 5000m
Class I & Class II		 Baseplate:3.04x2.00x1.00
Covered:3.09x2.28x1.00		 Stock RFQ
　　　 CFM300M CFM300M 300W 90-264 12V, 24V, 36V, 48V 2MOPP
Class I		 5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover)		 Stock RFQ
NEW LFM300M LFM300M 300W 85-264 12V, 15V, 24V, 28V, 30V, 48V, 54V 2 MOPP
Altitude 5000m
Class I & Class II		 Baseplate:4.04x2.00x1.00
Covered:4.09x2.28x1.00		 Stock RFQ
NEW LFM420M LFM420M 420W 85-264 12V, 15V, 24V, 28V, 30V, 36V, 48V, 54V 2 MOPP
Altitude 5000m
Class I		 Baseplate:5.00x3.00x1.00
Covered:5.09x3.29x1.00		 Stock RFQ
　　　 CFM500M CFM500M 500W 80-264 12V, 18V, 24V, 36V, 48V 2MOPP
Altitude 5000m
Meets EN60335-1
Class I & II		 5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)		 Stock RFQ
NEW LFM550M LFM550M 550W 85-264 12V, 15V, 24V, 28V, 30V, 36V, 48V, 54V 2 MOPP
Altitude 5000m
Class I & Class II		 Baseplate:5.00x3.00x1.00
Covered:5.09x3.29x1.00		 Stock RFQ
