PRODUCTS
Fanless Power Solution
Cincon AC-DC fanless power solution consists of baseplate-cooling power supplies and AC-DC brick type power supplies. The power range of baseplate-cooling power supplies starts from 130W to 500W and for the AC-DC brick, it begins from 70W to 750W. In addition, Cincon offers technical articles elaborating the outstanding performance of fanless power supplies. The suitable applications are industrial/ITE use with IEC/UL/EN 62368-1 safety approvals and medical use with IEC/UL/EN 60601-1 safety approvals.
ITE/Industrial Baseplate-cooled Open Frame
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| CFM130S | 130W | 80-264 | 12V, 18V, 19V, 24V, 36V, 48V | Altitude 5000m ClassⅠ& Class Ⅱ |
3.000x2.000x1.20 (Open-frame) 3.598x2.000x1.299 (Baseplate) 3.598x2.520x1.358 (Cover) |
|
| CFM150S | 150W | 90-264 | 12V, 24V, 28V, 36V, 48V | Altitude 5000m Class I & Class II |
4.00x2.00x1.283 (Open-frame) 4.598x2.00x1.362 (Baseplate) |
|
| NEW | CFM202S | 200W | 90-264 | 12V, 24V, 28V, 36V, 48V, 56V | Altitude 5000m Approval EN60335-1 ClassⅠ& Class Ⅱ |
4.000x2.000x1.311 (Baseplate) 4.598x2.520x1.358 (Cover) |
| CFM260S | 260W | 85-264 | 12V, 24V, 36V, 48V | Altitude 5000m Class I |
4.000x2.000x1.441 (Open-frame) 4.598x2.000x1.520 (Baseplate) 4.598x2.520x1.594 (Cover) |
|
| CFM300S | 300W | 90-264 | 12V, 24V, 36V, 48V | Altitude 5000m Meets EN60335-1 Class I |
5.000x3.000x1.421 (Baseplate) 5.355x3.425x1.591 (Cover) |
|
| NEW | CFM400S | 400W | 80-264 | 12V, 18V, 24V, 36V, 48V, 54V | Altitude 5000m Meets IEC/EN60335-1 |
5.000x3.000x1.540 (Baseplate) 5.354x3.425x1.673 (Cover) |
| CFM500S | 500W | 80-264 | 12V, 18V, 24V, 36V, 48V | Altitude 5000m Meets EN60335-1 |
5.000x3.000x1.540 (Baseplate) 5.354x3.425x1.673 (Cover) |
ITE/Industrial Brick Power
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|

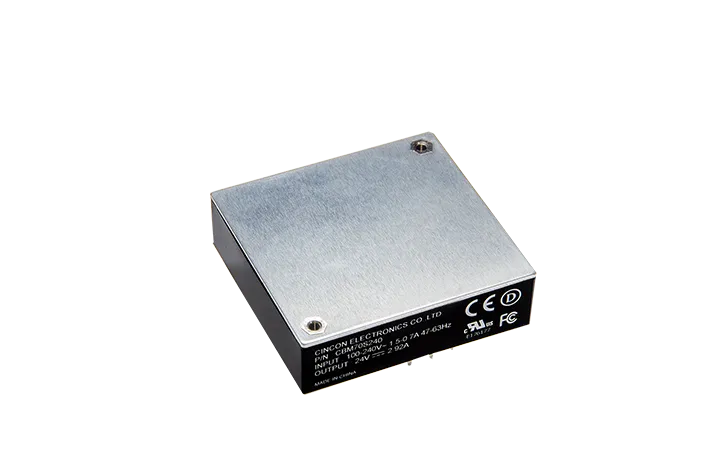

| CBM70S | 70W | 90-264 | 12V, 24V, 36V, 48V | Low Profile Wide Operating Temp. Built-in EMI Filter & Capacitor Class I |
2.28x2.40x0.67 | |
| NRND | CBM100S | 100W | 90-264 | 12V, 24V, 28V, 36V, 48V | Build In Class B Filter | 4.60x2.40x0.67 |
| NEW | CBM101S | 100W | 90-264 | 12V, 24V, 28V, 36V, 48V | Low Profile Wide Operating Temp. Built-in EMI Filter & Capacitor Class I |
4.60x2.40x0.67 |
| NEW | CBM150S | 150W | 90-264 | 12V, 24V, 28V, 36V, 48V, 54V | Low Profile Wide Operating Temp. Built-in EMI Filter & Capacitor Class I |
4.60x2.40x0.78 |
| NEW | PDF700S | 700W | 90-264 | 12V, 24V, 28V, 48V, 56V | Low Profile Built-in PFC Altitude 5000 Class I |
4.60x2.40x0.50 |
| NEW | PFC750 | 750W | 90-264 | 390V | Low Profile Built-in PFC Altitude 5000 |
2.28x2.40x0.50 |
Medical Baseplate-cooled Open Frame
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| CFM130M | 130W | 80-264 | 12V, 18V, 19V, 24V, 36V, 48V | 2MOPP Altitude 5000m Class I & Class II |
3.000x2.000x1.20 (Open-frame) 3.598x2.000x1.299 (Baseplate) 3.598x2.520x1.358 (Cover) |
|
| CFM200M | 200W | 90-264 | 12V, 24V, 48V | 2MOPP Class I & Class II |
4.000x2.000x1.480 (Baseplate) 4.606x2.441x1.594 (Cover) |
|
| CFM300M | 300W | 90-264 | 12V, 24V, 36V, 48V | 2MOPP Class I |
5.000x3.000x1.421 (Baseplate) 5.355x3.425x1.591 (Cover) |
|
| CFM500M | 500W | 80-264 | 12V, 18V, 24V, 36V, 48V | 2MOPP Altitude 5000m Meets EN60335-1 Class I |
5.000x3.000x1.540 (Baseplate) 5.354x3.425x1.673 (Cover) |
Related Technical Articles:
CFM130M/S Baseplate-cooling power supply
CFM150S Baseplate-cooling power supply
CFM260S Baseplate-cooling power supply
CFM500M/S Baseplate-cooling power supply
CFM500M/S Baseplate-cooling power supply in series connection
The advantages of AC-DC Brick Power Solution
