SIP / SMD 1-10W

SIP / SMD 1-10W

Cincon offers a variety of compact size DC/DC converters in SIP / SMD packages features 2:1 & 4:1 input range, continuous short circuit protection, regulated and unregulated outputs.

4:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)
NEW EC3SAWH 3W 18~74V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 3KVDC Isolation 0.86x0.36x0.44(SIP8)
NEW EC4SAWH 6W 18~74V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 3KVDC Isolation 0.86x0.36x0.44(SIP8)

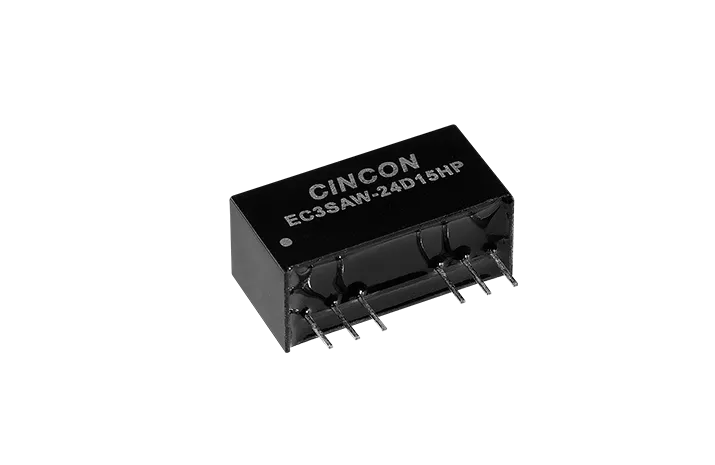

    EC3SAW 3W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVDC Isolation
Input UVP
0.86x0.36x0.44(SIP8)

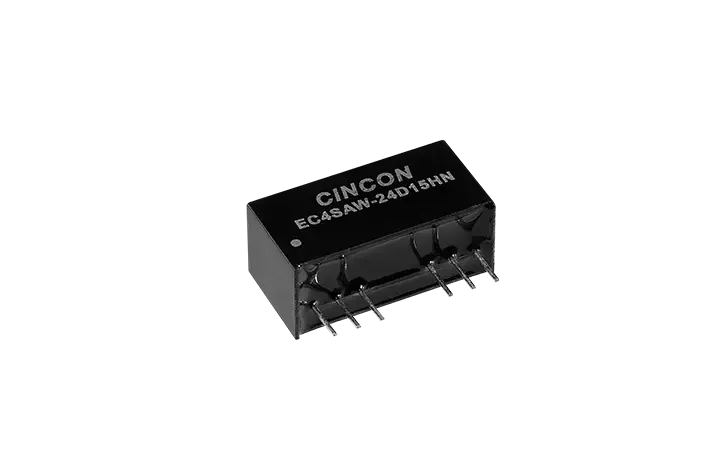

    EC4SAW 6W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVDC Isolation 0.86x0.36x0.44(SIP8)
    EC5SAW 10W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 3KVDC Isolation 0.87x0.37x0.47(SIP8)

2:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

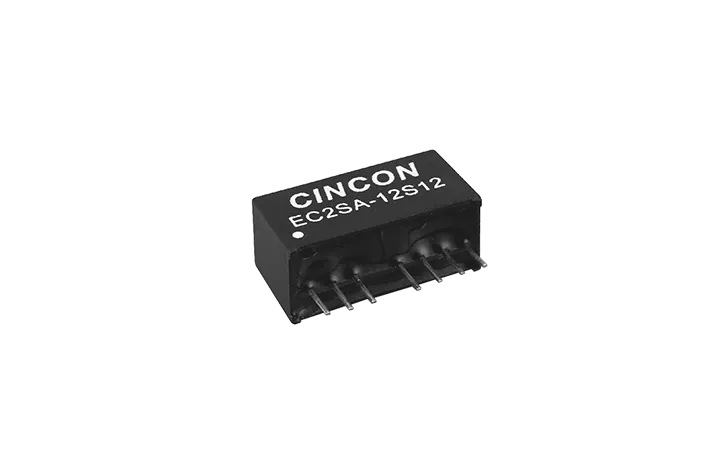

    EC2SA 2W 18~36V, 36~75V, 4.5~9V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVDC Isolation
Input UVP
0.86x0.36x0.44(SIP8)

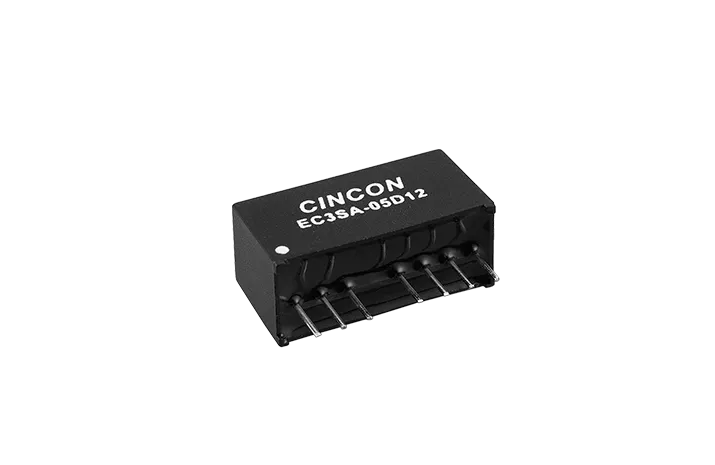

    EC3SA 3W 18~36V, 36~75V, 4.5~9V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVDC Isolation
Input UVP
0.86x0.36x0.44(SIP8)

Unregulated

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

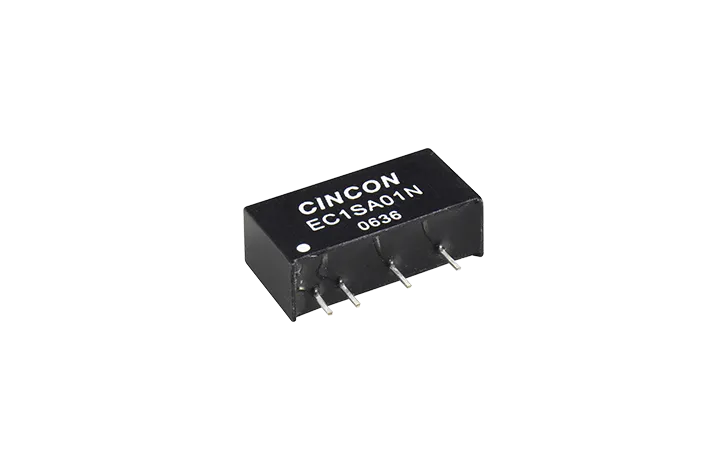

    EC1SAN 1W 10.8~13.2V, 21.6~26.4V, 4.5~5.5V 12V, 15V, 5V, ±12V, ±15V, ±5V 1.5KVDC Isolation 0.77x0.24x0.40(SIP7)
0.77x0.28x0.40(SIP7)
0.54x0.36x0.29(SMD)
0.64x0.36x0.29(SMD)

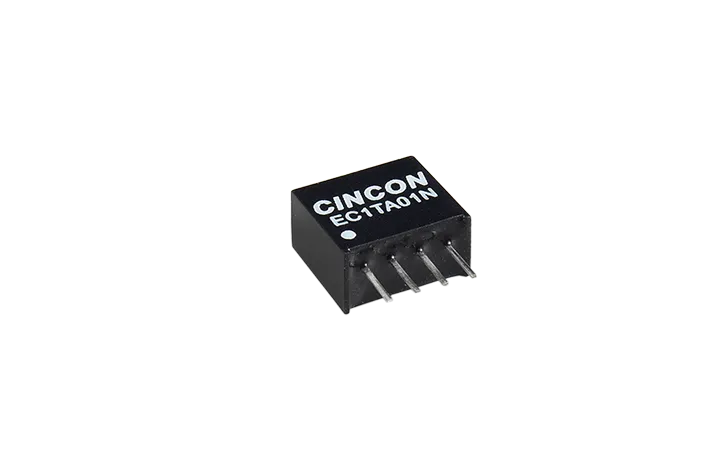

    EC1TAN 1W 10.8~13.2V, 21.6~26.4V, 4.5~5.5V 12V, 15V, 5V 1KVDC Isolation 0.46x0.24x0.40(SIP4)
0.46x0.30x0.40(SIP4)

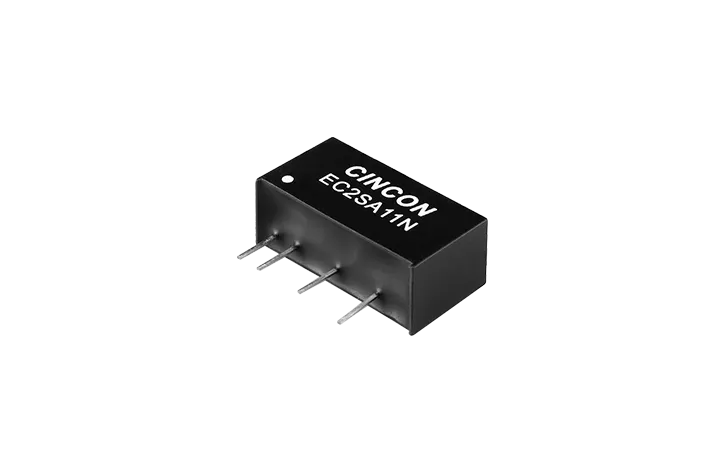

    EC2SAN 2W 10.8~13.2V, 21.6~26.4V, 4.5~5.5V 12V, 15V, 5V, ±12V, ±15V, ±5V 1KVDC Isolation 0.77x0.28x0.40(SIP7)

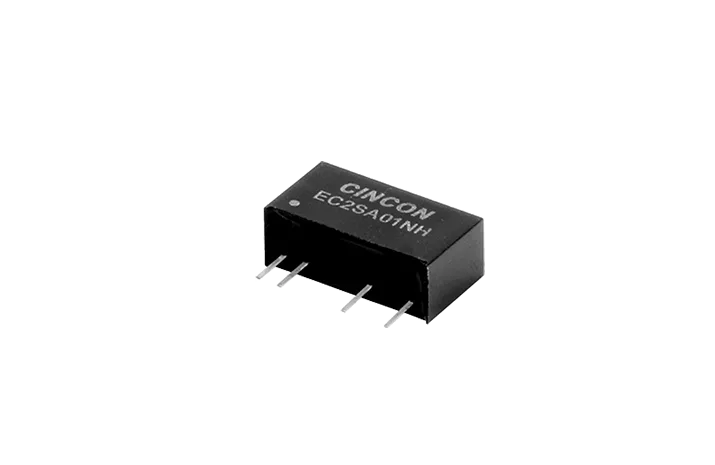

    EC2SANH 2W 10.8~13.2V , 21.6~26.4V, 4.5~5.5V 12V, 15V, 5V, ±12V, ±15V, ±5V 3KVDC Isolation 0.77x0.28x0.40(SIP7)
