CFM300M – 300W, 3” x 5” medical AC-DC switching power supply



April 19, 2016

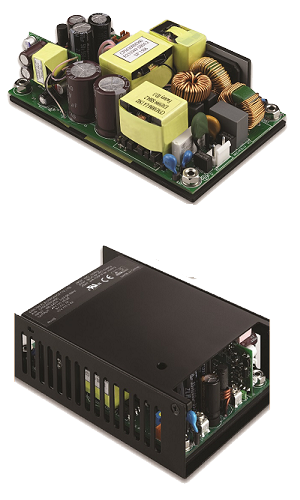

Cincon introduces the new series CFM300M, a high-density open-frame medical ac-dc power supply that provides 300W of regulated power in a 5.000x3.000x1.382 Inches (127.00x76.20x35.12mm) footprints.


The CFM300M series features a wide universal input voltage range of 90~264 Vac and is available in single output voltages of 12, 24, 36, and 48 Vdc. The modules comply with international medical safety regulations per 2xMOPP level and meet the radiated and conducted emission requirements for EN55022 Class B and CISPR/FCC Part 15 Class B.


The CFM300M series features a 5V auxiliary and 12V fan output with very high efficiency up to 94% at 230Vac and allows ambient operating temperature range of –40°C to 80°C (de-rating above 40°C). Covered version is available to extend the full power range. The modules are fully protected against output over-current, output over-voltage and over-temperature and continuous short circuit conditions. CFM300M series also features very low no load power consumption (<0.3W) and extremely low leakage current (≦300 μA). Furthermore, the standard control functions include PS on/off and 5% adjustable output voltage
