Power Up with Cincon ECLB Series





      Cincon ECLB Series of isolated DC-DC converters has earned widespread recognition in industrial, telecommunications, and railway sectors—as well as in extreme environments like the -55°C “M2” — thanks to its exceptional performance and feature-rich design. This article explores the series’ key technical strengths and how they offer superior benefits across diverse applications. With high power density, excellent efficiency, and robust reliability, the ECLB Series provides product designers with greater flexibility and a competitive edge.



Key Features:

1. Up to 75W Output Power — Fully DOSA-compatible 2”x1” pin-to-pin layout.

2. Wide 4:1 Input Range — Delivers efficiency up to 92.5%.

3. Compact Shielded Metal Case — Measuring just 2.05” x 1.2” x 0.4”, offering excellent EMI performance and thermal management.

4. Comprehensive Protections — Includes over-temperature, over-current, over-voltage, and under-voltage lockout, ensuring reliable operation under harsh conditions.

5. Certifications — Complies with IEC/EN/UL 62368-1; ECLB40W-110 series also meets EN 50155 railway standard.



Additional Highlights:

Three Power Variants — Covering a full range of input/output combinations.

Note: For more specifications, please read the datasheets.

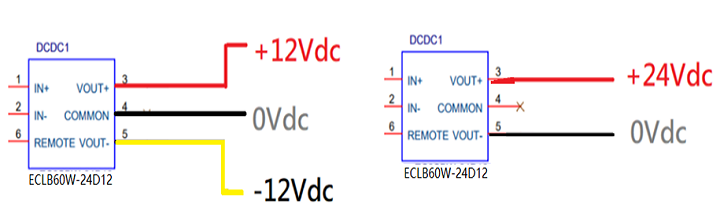

Single and Dual Output Options — With output trim functionality; dual models support

positive/negative voltage or voltage doubling configurations.







      Ultra-High Efficiency & Wide Operating Temp. — Rated for -40°C to +105°C, suitable for extreme environments like polar research, industrial communications, telecom, electronic doors, and satellite ground equipment. For Hi-Rel (Hi-Reliability) and defense use at-55°C (M2), optional external circuits enable compliance with MIL-STD-461, MIL-STD-1275, and MIL-STD-704.

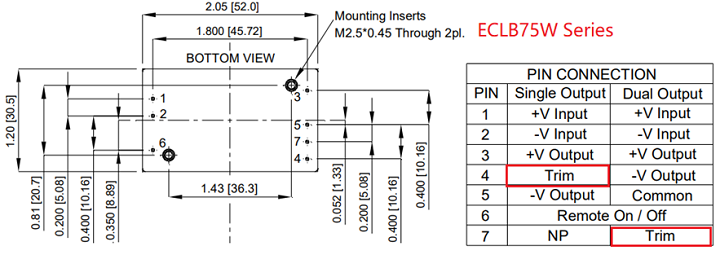

      Unique Mechanical Design — Unlike typical 2"x1" modules, the ECLB series supports both heatsink mounting and brick-style chassis integration, enabling easy installation in sealed outdoor enclosures with superior thermal performance and environmental resilience. See application notes for more details.



      Cincon is committed to delivering high-reliability, high-stability power solutions. The ECLB Series isolated DC-DC converters are engineered for rugged environments, offering outstanding performance, smart design, and safety—all while giving system designers the flexibility and power to succeed.



Contact for more support:sales@cincon.com
