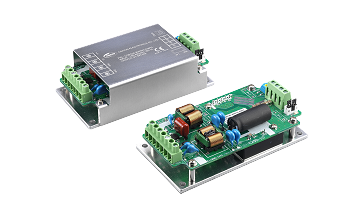

Cincon releases new DC/DC CHASSIS MOUNT CQB150-300S-CMFC(D) Series



#Product Press Release#DC-DC Converter#Industrial / ITE#High Input Voltage

May 10, 2019



Key Specs:

We are here to introduce our latest product design, the DC/DC CHASSIS MOUNT CQB150-300S-CMFC(D) Series. With high input range of 180~425Vdc input range (300V nominal), this new product is a chassis mountable DC-DC converter that offers 150 watts of output power @ single output voltages of 5, 12, 15, 24, 28, 48VDC and 3000VAC reinforced isolation.

Exceptional Performance:

It has a very low no load power consumption requirement of 10mA. Efficiency can go as high as 89%, and has a case operating temperature of - 40°C to 100°C.

Key Functions:

The standard control functions include remote on/off (positive or negative) and -20~+10% adjustable output voltage. The chassis structure offers built-in EMI EN55032 (EN55022 Class A) filters, and meet EN45545-2 requirements. Also, it meets UL60950-1 2nd (Reinforced Insulation) Approval for DC Modules.

Full protections:

Fully protected against input UVLO (under voltage lock out), output over-current, output over-voltage and over-temperature and continuous short circuit conditions.


This product is designed primarily for common applications of 300V nominal voltage, suitable for distributed power architectures, telecommunications, battery operated equipment and industrial applications.
