Cincon CFM500M series, 3”X5” 500W AC-DC Medical Power Supply New Product Release



#Product Press Release#Video#AC-DC Power Supply#Medical#Baseplate-cooling / Fanless

Jan 8, 2021

Key Specs:

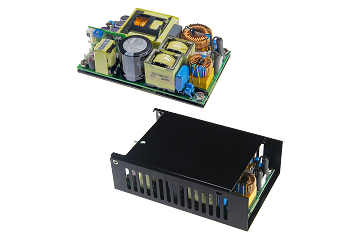

The CFM500M series is our new 2 MOPP high-density medical AC/DC open frame power supply with baseplate cooling design and provides 500W of regulated power in a 3X5 inches (127.00x76.20x39.10mm) dimension. It has safety approvals of UL60601-1/IEC60601-1/EN60601-1 Ed.3.1, and meets IEC/EN60335-1. With wider than before input range of 80~264Vac, it is available in 5 outputs of 12, 18, 24, 36 and 48VDC, and comes with an optional cover/case.




Exceptional Performance:

The power supply offers an immensely high efficiency of 94.5%, and a very wide operating temperature range of -40°C to +85°C, which covers most of the extreme environments. Also, this power supply can be used at a high altitude up to 5000m max, and a low leakage current of <0.1mA.


Key Functions:

The CFM500M features a low no load input power consumption less than 0.5W. Other features include PS On/Off Remote Control, and Power Good & Power Fail Signal.


Full protections & Safety Approvals:

● Over Temperature Protection, Continuous Short Circuit Protection

● Output Over Voltage & Output Over Current Protection

● UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 medical safety Approved

● 2 MOPP

● Meet IEC/EN60335



The CFM500M is suitable for a variety of medical applications, such as healthcare, diagnostic and monitoring equipment in the hospital and dental clinic. Furthermore, the design meets EN60335-1 for household appliance.
