Defense Solution

Cincon provides a series of reliable DC/DC converters for defense and aviation use. Power range from 30W to 300W. Solutions for EMC MIL-STD-461 & MIL-STD-1275. The high power density and heat dissipation performance are suitable for harsh environment. In addition, Cincon has own EMC lab for testing EMC MIL-STD-461 standard, saving developement time efficiently. In addition, to ensure the product reliability, we perform Highly Accelerated Life Tests (HALT) to assess operating and destructive limits. HALT involves stressing products beyond design specs, allowing engineers to enhance design, improve robustness, and boost customer confidence in early prototype stages.

Cincon has diverse successful stories of defense applications such as ground communication, radar, display, computer ,and more electronic devices of air, aerospace and ground vehicles, and vessels.

8:1 Input Range

		Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Datasheet	Find stock	RFQ
		CQB50W8	50W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant M2 grade option	2.28×1.45x0.50 (Quarter Brick)		Stock	RFQ
		CQB75W8	75W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant M2 grade option	2.28×1.45x0.50 (Quarter Brick)		Stock	RFQ

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Find stock	RFQ
EC5SBW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation UL62368-1 M2 grade option	1.00x1.00x0.40(DIP)	Stock	RFQ

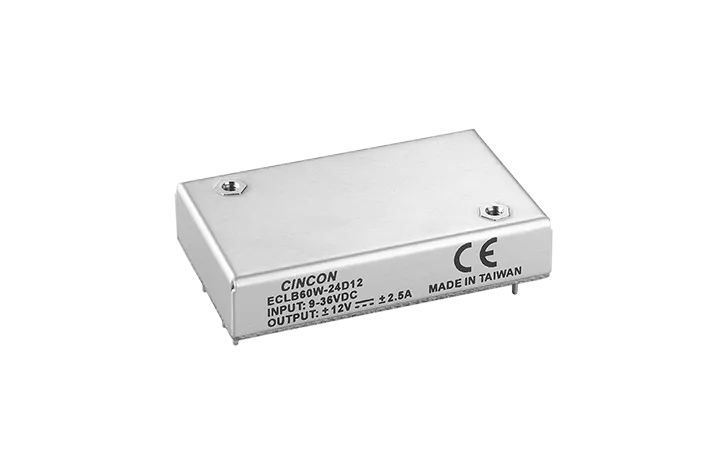

ECLB60W	60W	18~75V, 9~36V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts M2 grade option	2.05x1.20x0.40(DIP)	Stock	RFQ

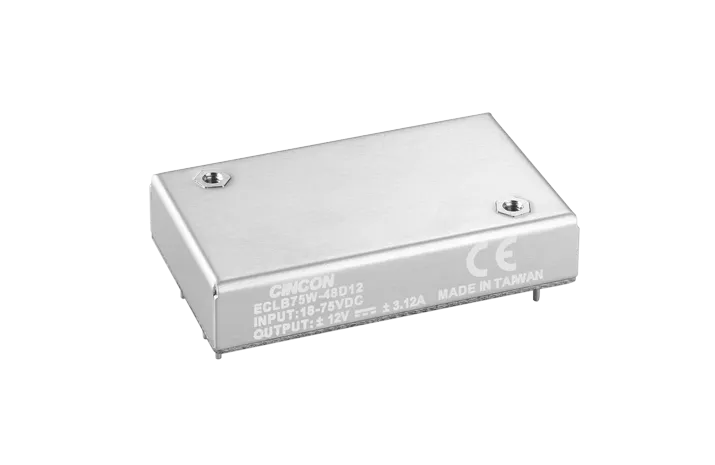

ECLB75W	75W	18~75V, 9~36V	5V, 12V, 15V, ±12V, ±15V, ±24V	2.25KVdc Isolation With Mounting Inserts M2 grade option	2.05x1.20x0.40(DIP)	Stock	RFQ

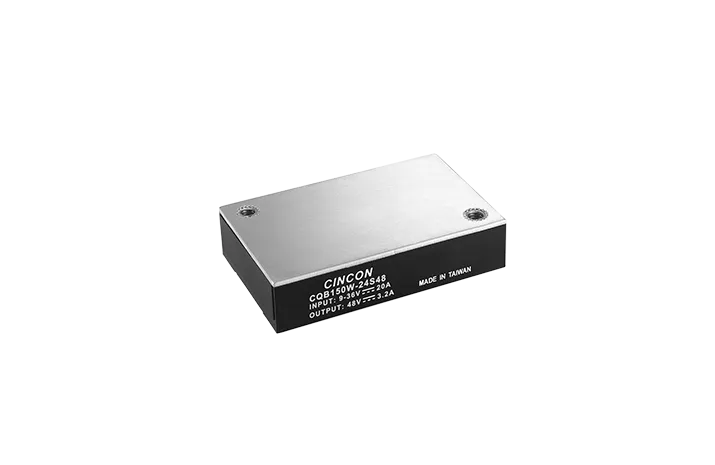

CQB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	2250Vdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant M2 grade option	2.28×1.45x0.50 (Quarter Brick)	Stock	RFQ

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Find stock	RFQ
CQB75-300S	75W	180~450V	12V, 15V, 24V, 3.3V, 48V, 5V	3KVAC Isolation UL62368-1 & CB M2 grade option	2.28×1.45x0.50 (Quarter Brick)	Stock	RFQ
CQB150-300S	150W	180~425V	12V, 15V, 24V, 28V, 48V, 5V	3KVAC Isolation UL62368-1 & CB M2 grade option	2.28×1.45x0.50 (Quarter Brick)	Stock	RFQ
CHB300-300S	300W	180~425V	12V, 24V, 28V, 48V, 5V	3KVAC Isolation UL60950-1 & CB M2 grade option	2.28×2.40x0.50 (Half Brick)	Stock	RFQ

EMI Filter - PCB Mount

Model	Power	Input Voltage	Features	Dimensions (Inch)	Find stock	RFQ

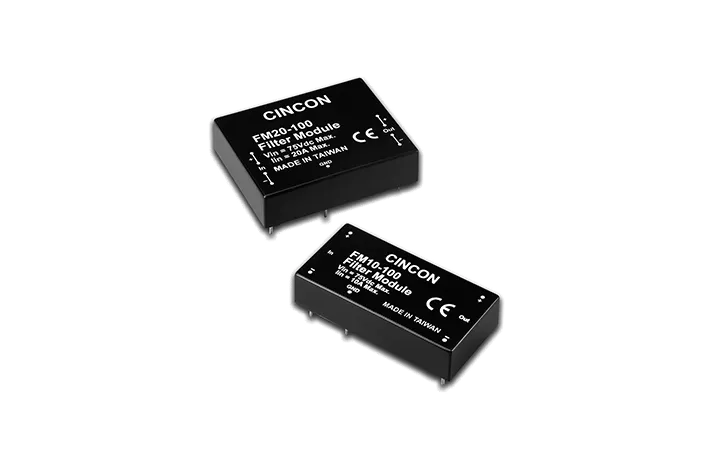

FM10/20	10-20A	75V	Input 75V Maximum	2.00x1.00x0.46 2.00x1.60x0.50	Stock	RFQ

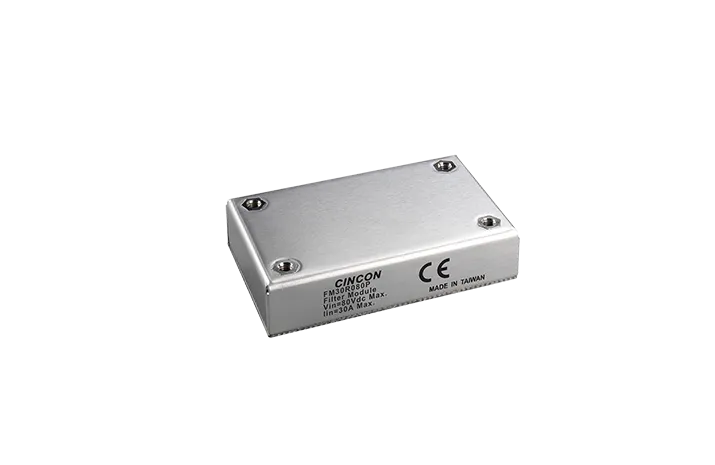

FM30R	30A	80V	Input 80V Maximum	2.28x1.45x0.50	Stock	RFQ

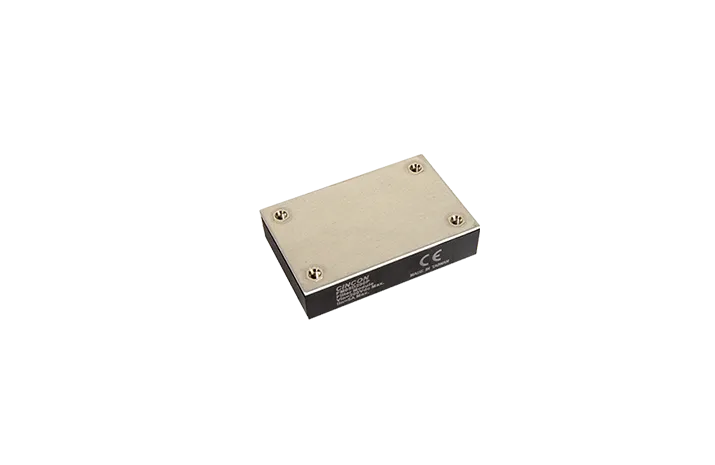

FM10D	10A	200V	Input 200V Maximum	2.28x2.40x0.97	Stock	RFQ
FM05D	5A	200V	Input 200V Maximum	2.28x1.45x0.50	Stock	RFQ

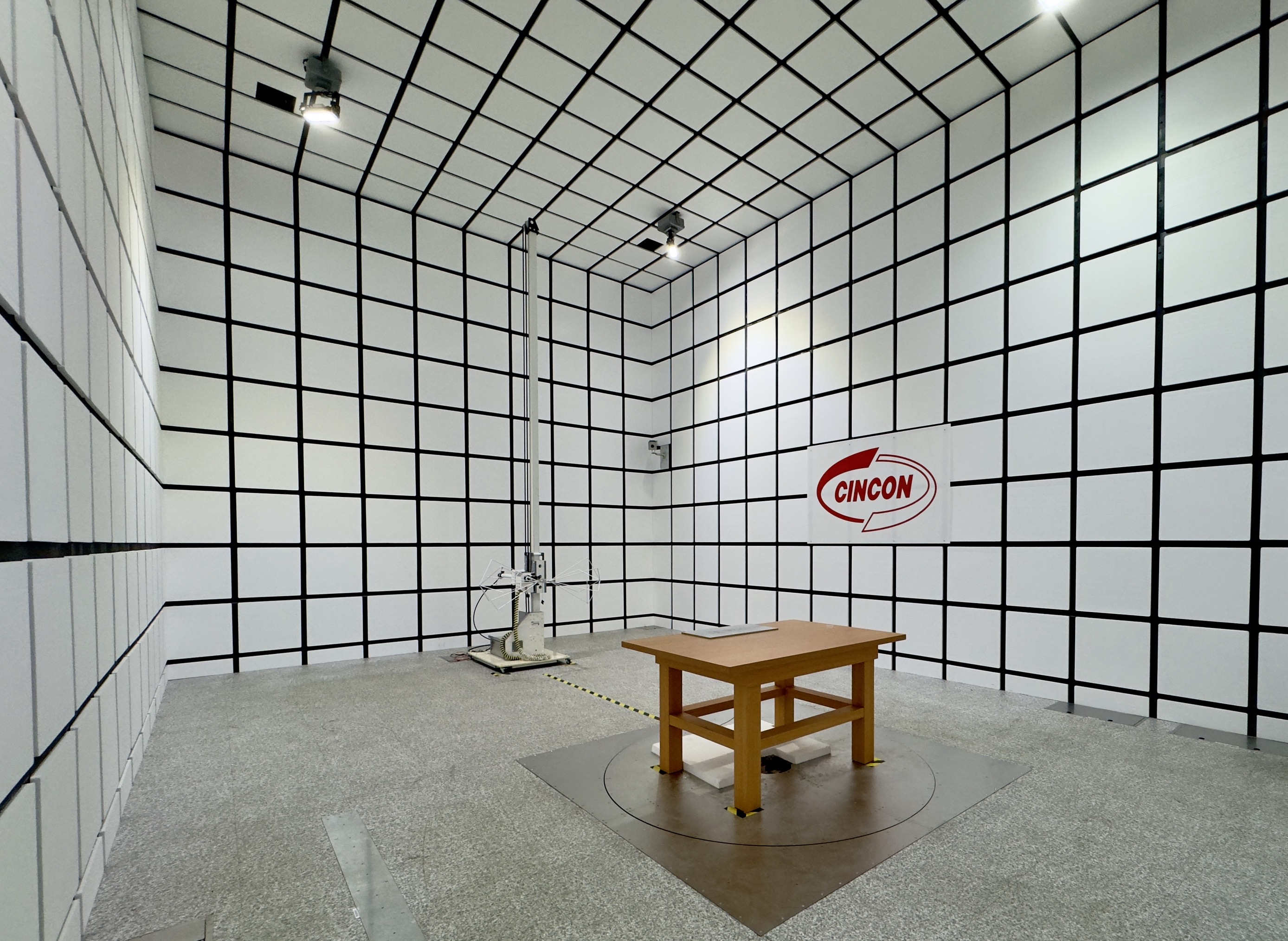

Information of Cincon Inhouse EMC Chamber:

Radiation Room Size：9.0x6.1x6.0 m
Frequency：9 kHz ~ 1 GHz
Conduction Room Size：9.0x4.0x3.0 m
Frequency：9KHz ~ 30MHz

Standard：

EN55032 Class A&B / EN50121-3-2 (EN50155) / EN61000-6-4

FCC Part 15 / FCC Part 18 / IEC 61000-4-2 / IEC 61000-4-5 / EN 61204-3
MIL-STD-461F CE101/CE102/RE101
