Cincon Ultra-Wide Input Range DC-DC Converters

27

Feb

February 27, 2020

Cincon Ultra-Wide Input Range DC-DC Converters



In all industrial, transportation, and medical applications, DC-DC converters are used in almost every system. Whether it is low power modules, or high-power train locomotives, the need for power conversion from a wide and various input ranges is always required.



A good example is the railway industry, where 24V, 48V, 72V, 96V and 110V are all used to distribute the needed power throughout the whole system, and it becomes essential to have a single DC-DC converter that could convert any on-board available voltage inputs, which not only generate less power loss, but also reduce costs and inventory of the supply chain. In simple words we can think to “Universal Input Voltage Range DC Converter” dedicated to Railway Applications.



Another advantage where ultra-wide input comes in handy is where the application uses a battery. When battery is fully charged, it delivers a steady, although slightly higher rated voltage. However, when the battery power depletes, it drops to a lower than desired output. This phenomenon is most apparent in a cranking engine, where the power from the battery is greatly drawn in a short duration of times, and the output drops significantly.



Cincon’s “Ultra-Wide Input DC-DC converter” and “DC-DC Plug-In Chassis Mounting-Ready to use” accommodate to these circumstances where the power supplies are inadequately regulated, and have a much higher capability to withstand spikes and transient voltages.



In the past few years, Cincon has been developing a series of Ultra-Wide input DC-DC converters, to facilitate all the various needs for customer application power conversion.



From the lower 20W, to the upper 600W, Cincon is your one-stop shopping place for all your needs. Below we list just a few of our current Wide and Ultra-Wide Input product line:

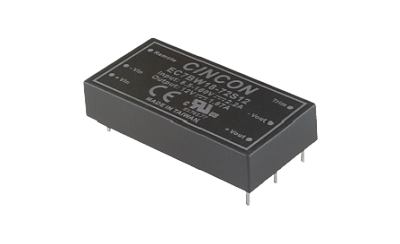

EC7BW18: 20W DC-DC Converter



EC7BW18: 20W DC-DC Converter

8.5~160Vdc Input Range (18:1)
2”x1” Size
High Efficiency Up to 90%
UL62368-1 2nd Reinforce Insulation Approved
Meets EN50155 & EN45545-2

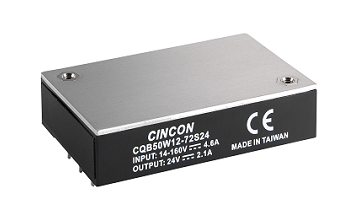

CQB50W12: 50W DC-DC Converter



CQB50W12: 50W DC-DC Converter

14~160Vdc Input Range (12:1)
Quarter Brick Size
High Efficiency up to 89%
Meets EN50155 & EN45545-2

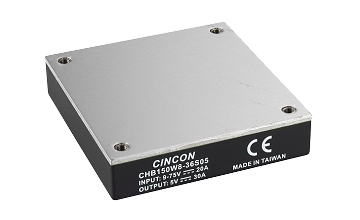

CHB150W8: 150W DC-DC Converter



CHB150W8: 150W DC-DC Converter

9~75Vdc Input Range (8:1)
Half Brick Size
High Efficiency up to 90%
UL60950-1 2nd Approved

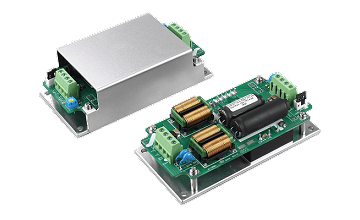

CQB50W12-CFMC/D



CQB50W12-CFMC/D

14~160Vdc Input Range (12:1)
Filtered Solution Ready to mount and connect
High Efficiency up to 89%
Meets EN50155 & EN45545-2



Cincon is excited to let everyone know that the EC7BW18 series has been accumulating more and more successful stories such as underground trains, firewall appliance, IOT gateway, industrial signaling device, infotainment, railway battery system, and railway power board.



In the coming months, we will also be releasing more products, such as quarter brick/half brick size from 75W to 200W, and 8:1/12:1 input range. Cincon is looking forward to introducing them to everyone.
