New Products
DC/DC Converters
Cincon latest release list of DC-DC converters with the most updated safety approvals.
18:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | EC7AW18 | 10W | 8.5~160V | 5V, 12V, 15V, ±5V, ±12V, ±15V | 3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant |
1.25x0.80x0.50(DIP24) |
16:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | EC7BW18-ECRT/EDRT | 20W | 10~160V | 12V, 15V, 5V, ±12V, ±15V, ±24V | EN50155/ EN50121-3-2/ EN45545-2 Compliant Low Inrush Current Input Reverse Polarity Protection EN50155 Class S3/ Class C2 Criteria A Without External Capacitor |
4.45x2.33x0.85 (ECRT) 4.45x2.33x1.43 (EDRT) |
14:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | CQB100W14 | 100W | 12~160V | 5V, 12V, 15V, 24V, 28V, 54V | 3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant |
2.28×1.45x0.50 (Quarter Brick) |
12:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | CHB150W12 | 150W | 14~160V | 5V, 12V, 15V, 24V, 48V | 3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant |
2.28×2.40x0.50 (Half Brick) |
| NEW | CHB200W12 | 200W | 14~160V | 12V, 15V, 24V, 48V | 3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant |
2.28×2.40x0.50 (Half Brick) |
8:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | CQB50W8 | 50W | 9~75V | 12V, 15V, 24V, 28V, 48V | 3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant |
2.28×1.45x0.50 (Quarter Brick) |
| NEW | CQB50W8-36SXX-CMFC(D) | 50W | 9.5~75V | 12V, 15V, 24V, 28V, 48V | Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155(EMC) |
4.60x2.40x1.46 (CMFC) 4.60x2.49x1.46 (CMFD) |
| NEW | CQB75W8 | 75W | 9~75V | 12V, 15V, 24V, 28V, 48V | 3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant |
2.28×1.45x0.50 (Quarter Brick) |
| NEW | CQB75W8-36SXX-CMFC(D) | 75W | 9.5~75V | 12V, 15V, 24V, 28V, 48V | Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155(EMC) |
4.60x2.40x1.46 (CMFC) 4.60x2.49x1.46 (CMFD) |
4:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | EC3SAWH | 3W | 18~74V, 9~36V | 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V | 3KVDC Isolation | 0.86x0.36x0.44(SIP8) |
| NEW | EC4SAWH | 6W | 18~74V, 9~36V | 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V | 3KVDC Isolation | 0.86x0.36x0.44(SIP8) |
| NEW | EC5DAW | 10W | 9~36V, 18~74V | 3.3V, 5V, 12V, 15V, ±12V, ±15V | 3KVDC Isolation | 0.95x0.54x0.39(DIP16) |
| NEW | EC7AW | 10W | 18~74V, 9~36V | 12V, 15V, 3.3V, 5V, ±12V, ±15V | 3KVdc Isolation EN55032 Class A |
1.25x0.80x0.40(DIP24) |
| NEW | CQB100W-110SXX-CMFC(D) | 100W | 43~160V | 5V, 12V, 15V, 24V, 28V, 48V | Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155(EMC) |
4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD) |
2:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | CQB75-300S-CMFC(D) | 75W | 180~450V | 3.3V, 5V, 12V, 15V, 24V, 48V | Screw Terminal Build in filter EN45545-2 Baseplate Cooled |
4.60x2.40x1.24 (CMFC) 4.60x2.49x1.35 (CMFD) |
| NEW | CQB75-300S | 75W | 180~450V | 12V, 15V, 24V, 3.3V, 48V, 5V | 3KVAC Isolation UL62368-1 & CB |
2.28×1.45x0.50 (Quarter Brick) |
| NEW | CQB200 | 200W | 18~36V | 24V, 28V | 2250Vdc Isolation UL62368-1 EN45545-2 |
2.28×1.45x0.50 (Quarter Brick) |

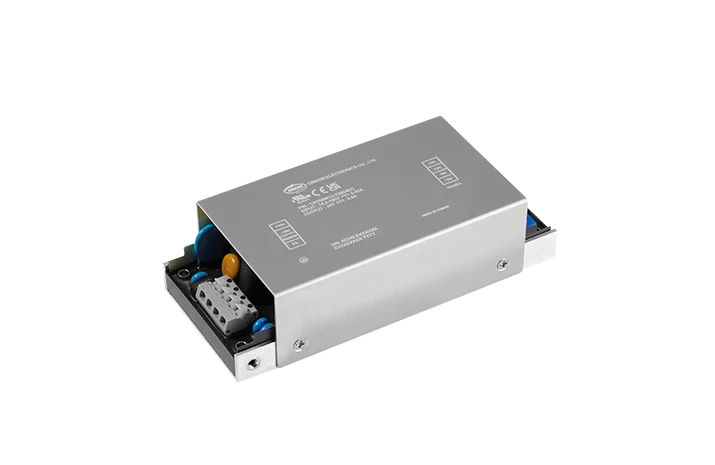

| NEW | CFB750-300SXX-CMFD | 750W | 200~425V | 12V, 15V, 24V, 28V, 36V, 48V | Screw Terminal Build in filter EN45545-2 Baseplate Cooled |
9.45x4.33x1.65 |
| NEW | CFB800 | 800W | 18~36V | 28V | 1.5KVDC Isolation |
4.60×2.40x0.50 (Full Brick) |
