AC-DC Medical Open-frame Power Supplies

Cincon Medical Products Meet Highest Requirements:

Accumulating a couple decades of experience in medical products design, Cincon provides customers with a variety of products and technical services.

Our AC-DC Medical products provide low leakage current and harsh environment endurance that meets the highest requirements of safety standard IEC60601, 2MOPP rated for latest medical power supplies. They are very suitable for medical devices such as ventilator, dental chair, and dental cleaning machine.

In addition, design also meets household application.

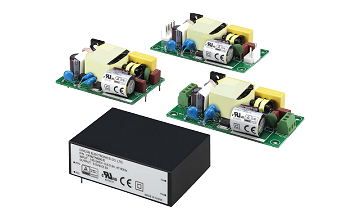

Power Range 20W-350W & Various Package Type for You to Choose:

In Cincon medical solution, the AC-DC medical power supplies offer the output power range from 20W~350W with different types which are the following:

1. On-board Type
2. Connector Type
3. Enclosed Type
4. Baseplate-cooling Type



Baseplate-Cooling Technology:

The new generation of medical power supplies are already built-in with Baseplate-Cooling design showing outstanding fanless heat dissipation.



Baseplate-Cooling offers the benefits:

1. Effectively exhaust heat from within the power supply.
2. Lowers failure rate of critical components within the power supply.
3. Providing more flexible installation of the power supply, and ability to withstand high temperature environments.



Key Features:

The following are the key features of AC-DC medical power supplies.

1. Class I or Class II Options.
2. Universal Input 90~264Vac, or wider input 80~264Vac.
3. Meet 2MOPP, and EN61558 (60335)
4. Safety meets for:
    a.ANSI/AAMI ES60601-1/EN60601-1 Ed 3.1
    b.EN60601-1-2 Ed4.0 Class B
5. CEC & ErP, Level VI Compliant.
6. Altitude up to 5000M.



Now we have stocks to support you to fight the COVID-19, please check the product line to find out what you need for your device.



Product Lines:



On-board



Class II

CFM21M



CFM21M: 20W AC-DC Medical Power Supply (New)

20W, Low Profile 0.8”
90~264 Vac Input
2MOPP
4 Mounting Options

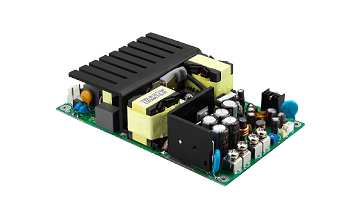

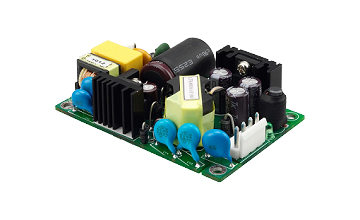

Connector

Class I

CFM40M



CFM40M: 40W AC-DC Medical Power Supply

40W, 2”x3” Size
90~264 Vac Input
2MOPP
3 Options

CFM60M



CFM60M: 60W AC-DC Medical Power Supply

60W, 2”x4” Size
90~264 Vac Input
2MOPP
2 Options

CFM100M



CFM100M: 100W AC-DC Medical Power Supply

100W, 3”x5” Size
90~264 Vac Input
2MOPP

CFM150M



CFM150M: 150W AC-DC Medical Power Supply

150W, 3”x5” Size
90~264 Vac Input
2MOPP

CFM351M



CFM351M: 350W AC-DC Medical Power Supply

350W, 4”x6” Size
90~264 Vac Input
2MOPP

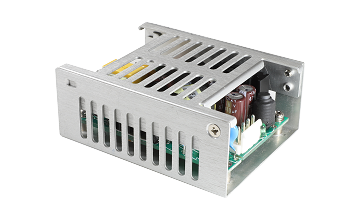

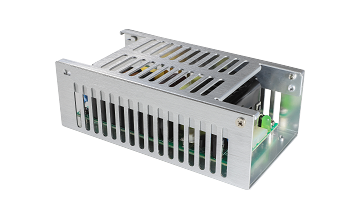

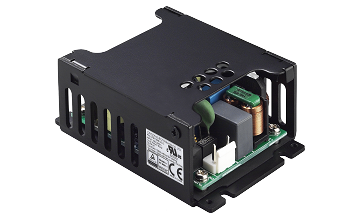

Enclosed

Class I

CFM40M



CFM40M: 40W AC-DC Medical Power Supply

40W, 2.4”x3.2” Size
90~264 Vac Input
2MOPP
3 Options

CFM60M



CFM60M: 60W AC-DC Medical Power Supply

60W, 2.4”x4.6” Size
90~264 Vac Input
2MOPP
2 Options

Class I & Class II

CFM130M



CFM130M: 130W AC-DC Medical Power Supply (New)

130W, 2.5”x3.6” Compact Size
80~264 Vac Input
2MOPP
3 Options

CFM200M



CFM200M: 200W AC-DC Medical Power Supply (New)

200W, 2.4”x4.6” Compact Size
90~264 Vac Input
2MOPP
2 Options

Class I

CFM300M



CFM300M: 300W AC-DC Medical Power Supply (New)

300W, 3.4”x5.3” Compact Size
90~264 Vac Input
2MOPP
2 Options

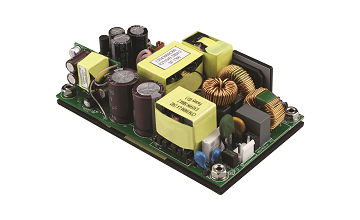

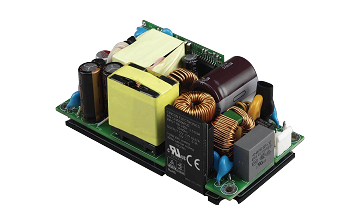

Baseplate-Cooled Design



Class I & Class II

CFM130M



CFM130M: 130W AC-DC Medical Power Supply (New)

130W, 2”x3” Compact Size
80~264 Vac Input
2MOPP
3 Options

CFM200M



CFM200M: 200W AC-DC Medical Power Supply (New)

200W, 2”x4” Compact Size
90~264 Vac Input
2MOPP
2 Options

Class I

CFM300M



CFM300M: 300W AC-DC Medical Power Supply (New)

300W, 3”x5” Compact Size
90~264 Vac Input
2MOPP
2 Options
